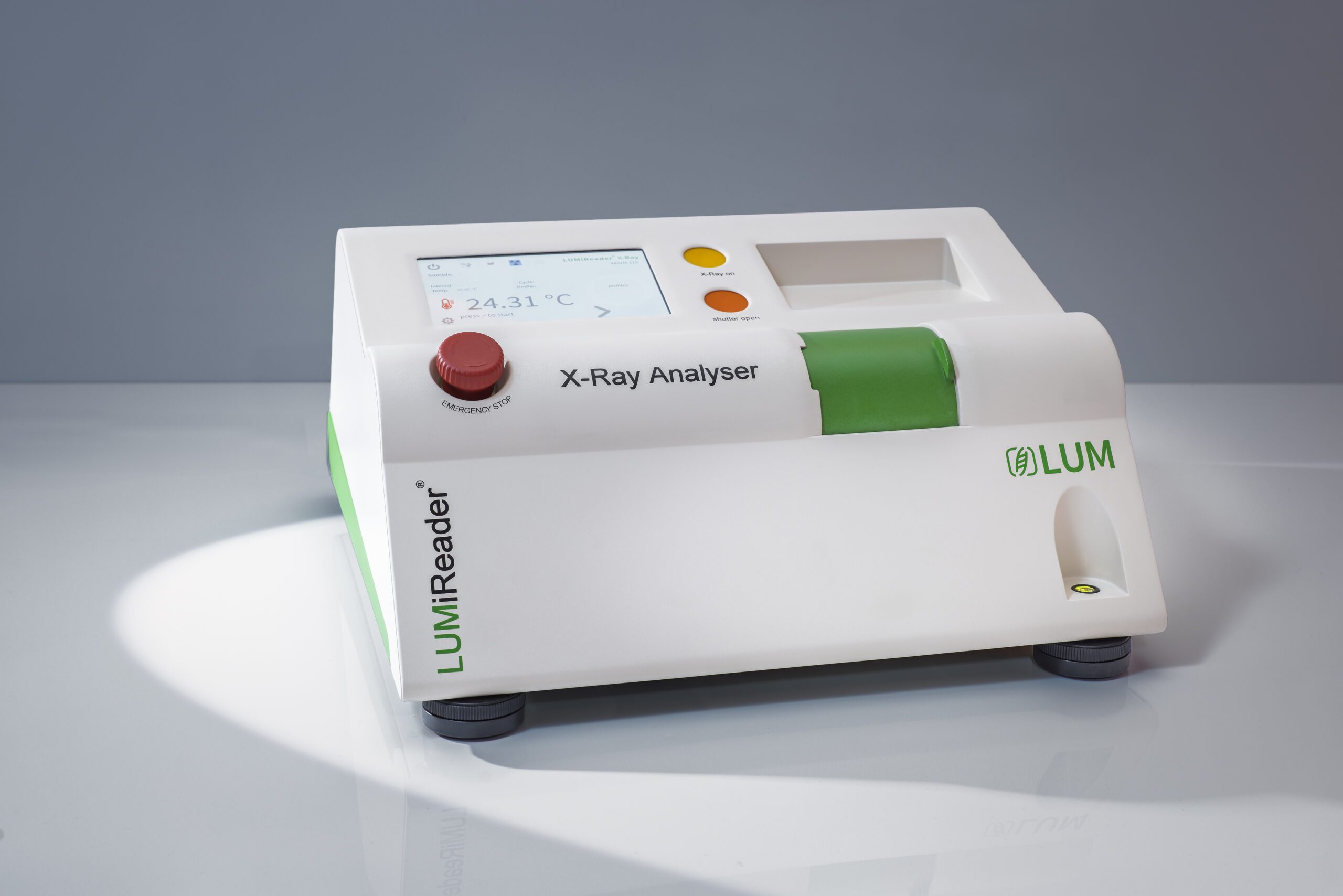

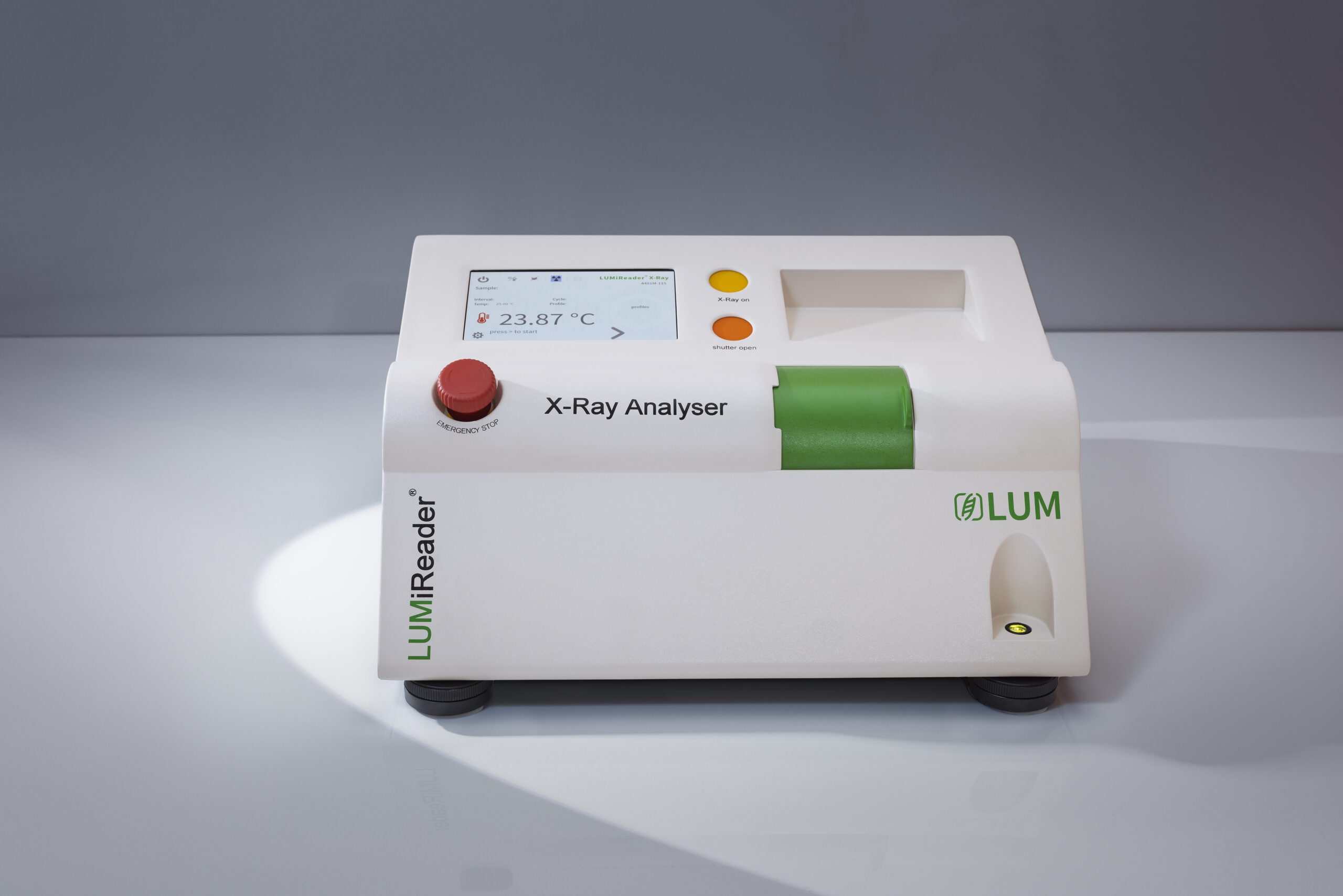

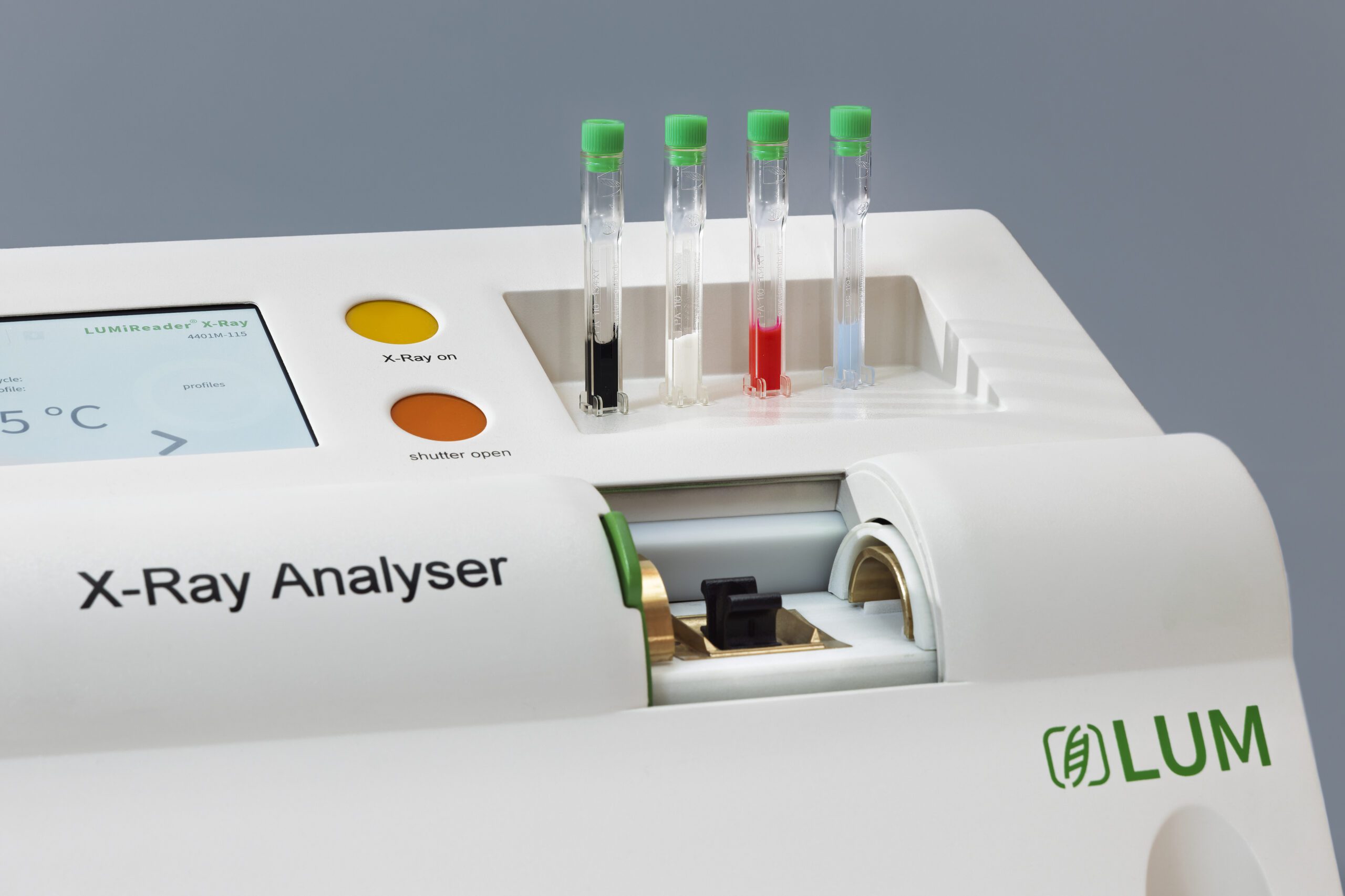

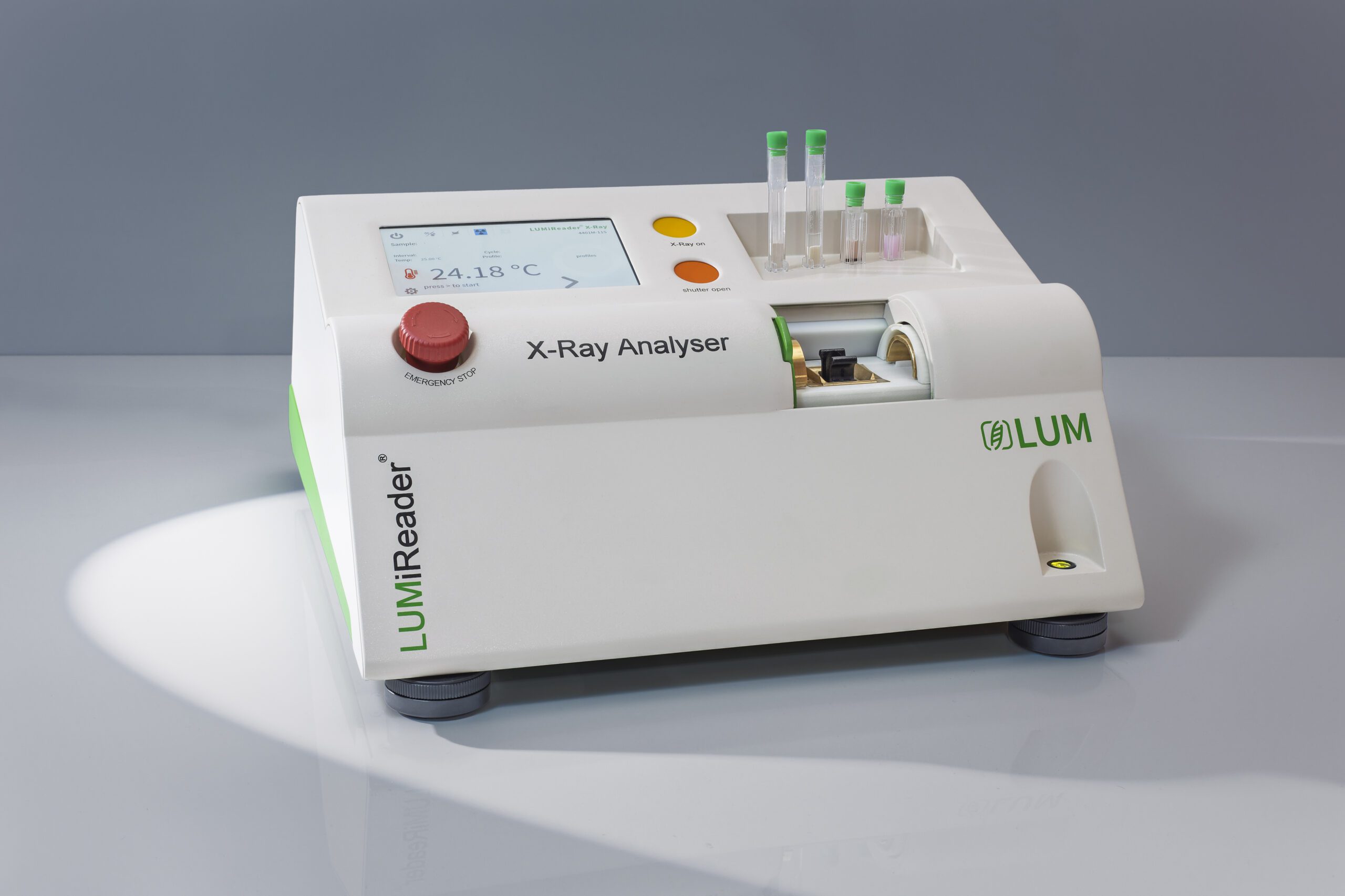

The LUMiReader X-Ray is the first dispersion analyser designed for one purpose only: to study dispersability, stability, separation, and consolidation phenomena for completely transparent to completely opaque emulsions, suspension, sludges, slurries, foams and powders in real-time. For the first time ever, illuminate your sample instantaneously from top to bottom. Solve your most challenging dispersion problems with complete insight. Go places light cannot.

Our patented solution combines X-ray vision with the proven STEP-Technology^®, permitting highest spatial resolution, short sampling intervals and powerful detection technique. The LUMiReader X-Ray employs monochrome and parallel X-rays with the help of a special crystal.

More than 1,600 detectors record the transmitted beam, giving an unprecedented resolution over the entire sample cell of 20 mm height. Kinetics of instantaneous recorded transmission profiles across your whole sample are converted into stability and separation rates. Particle concentration, sediment packing density and X-ray attenuation can also be calculated based on the extinction profiles.

The obtained Space- and Time-resolved Extinction Profiles allow you to measure and understand particle stability, phase separation, and sediment consolidation in systems that where up to now, unknown frontiers of science and technology.

You now can optimize your formulation, measure its stability, and perform accurate shelf life tests, regardless of the shape or concentration of your dispersed particles and droplets. In-situ, real-time, non-invasive and non-destructive.

Typical applications are ceramics, cosmetics, pharmaceutics, paint & pigments, construction materials and fillers, as well as mining and petrol industry dealing with complex emulsions, slurries and sludges.

No more dilutions, no more guess work, no more unexpected surprises. Analyse and understand your sample as is, no matter how opaque or concentrated your formulation is.

For all those instances where you need to understand opaque dispersions, foams, emulsions, or clear microemulsions where dilution is impossible or has unknown side-effects and consequences there is a solution now, and you are looking right at it.

There are many claims out there about the ability to analyze concentrated systems. When pressed however, it turns out that what is concentrated to one person is dilute to another. With that in mind, and wanting to avoid any confusion, all we can state unequivocally is that the LUMiReader X-Ray was designed with one goal in mind: to allow you to analyze and understand concentrated and totally opaque emulsions and suspensions.

Abrasives

Batteries

Carbon black

Catalysts

Coated particles

Cosmetics

Ceramics

Construction materials

Lubricants

Magnetic particles

Microemulsions

Metals

Mineral powders

Nanosuspensions

Oil sands

Paints

Pigments

Rigid foams

Silicone emulsions

Solid electrolytes

In-situ analysis up to highest concentrations

No sample dilution

Signal does not depend on particle geometry

High-resolution concentration pro  les of multi-component systems

Stability & separation analysis in most opaque dispersion
