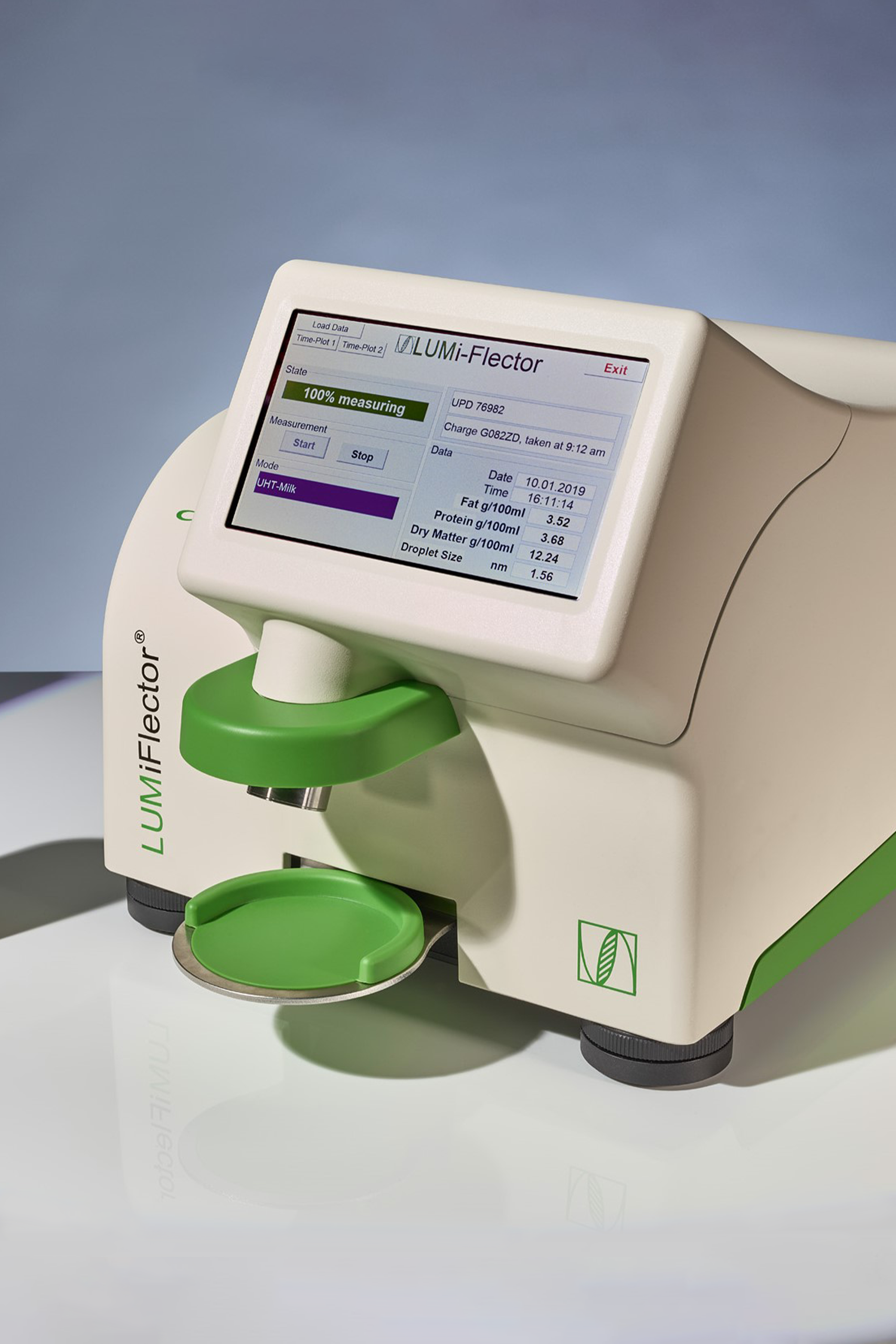

LUMiFlector
The LUMiFlector® is a powerful measuring instrument for product parameter determination & monitoring. The innovative patented MRS-Technology® is the core of the instrument. It quantifies parameters of manifold products – no sample preparation, no chemicals. Application fields include food, feed, pharmaceutical, biotechnology products and medical nutrition and beyond.
Quantification of specification of products based on suspensions or emulsions
Characterization of product properties resulting from dispersibility, homogenization, dilution
Automatic production monitoring and control
Process optimization
Milk standardization
Fast quality assessment
Large variety of liquid and semi-liquid products, i. e. dairy products, enteral nutrition, feed products, starch, soybean products, cells, yeast, suspensions, beverages, spicy sauces, dips, ketchup, slurries
Biotechnology
Determination of product specifications: fat, protein & total solids
Broad range of applications
Fast monitoring
Automatic process control
Efficient screening and QA
No preparation of the sample
No use of chemicals
No direct contact of sensors with the product
Easy to clean & easy to handle
Self-training
Low-maintenance
Stable and robust system
Specifications
Measuring principle: Scattering, Refraction, Fluorescence
Measurement time: < 20 s
Quantities: concentration of dispersed solids and/or liquid particles;
customer-defined values
Sample type: Emulsions, Suspensions
Volume: 200 ml (> 70 ml with customized cup) for At-line
Light source(s): UV-VIS-NIR
Measurement cup: Stainless steel
Calibrations (on-board): UHT / ESL milk (fat, protein, total solids)
Ambient temperature: 10 to 35 °C
Product support: up to 8 products programmable, 4 measurement
quantities per product
Dimensions (W x H x D): (At-line) 30 x 30 x 58 cm3, 12.5 kg
(Inline) Sensor: 10 x 10 x 20 cm3, 1.5 kg
Spectrometer: 38 x 38 x 23 cm3, 8 kg
Industrial PC: 38 x 38 x 23 cm3, 9 kg
Process interface: VARINLINE®: DN 25-150 x 25 cm3, 1.5 kg
(to be ordered separately)
